PVC Control Cable (KVV/KVVR/KVV22/KVVP Series)

1.Product Overview

PVC control cables are manufactured with polyvinyl chloride (PVC) insulation and sheath, designed for control, signal, and communication circuits with rated voltage up to 450/750V. They are widely used for fixed installation in industrial control systems, automation equipment, power stations, and building management systems. The cables feature excellent insulation performance, high flexibility, flame retardancy, and mechanical strength, making them one of the most common and economical types of control cables.

2.Key Features

- Excellent electrical insulation and dielectric strength

- Good flexibility and easy installation

- Flame-retardant, oil-resistant, and acid/alkali-resistant

- Stable performance and long service life

- Compliant with  GB/T 9330, standards

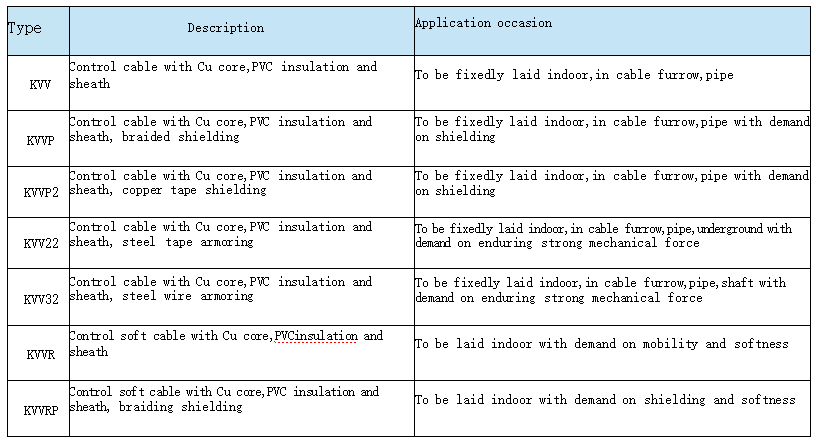

3. Type,Description and Application Occasion

Note:1:We also produce flame retardant cable according to the require- ments of customer.Prefix“ZR-”should be added.Eg:ŽR-KVV type

2:We also produce cable which does not beling to standard type acc-ording to requirement of customer.Eg.KVVP2-22KVVP32.

4. Typical Technical Data

注：Note:Cores  recommended:2,3,4,5,6,7,8,10,12,14,16,19,24,27,、30、37.44、48、52、和61芯。

5.Applications

- Industrial automation control systems

- Power generation and distribution control circuits

- Instrumentation and signal transmission

- Building and facility management systems

- DCS and PLC control systems

6.Advantages

- Cost-effective with reliable electrical performance

- Flexible, easy to strip and install

- Available in various shielding and flame-retardant versions

- Customizable in conductor size, color, and configuration

7.Ordering Information

Please specify the following information when ordering:
1. Cable type (e.g., KVV, KVVP, KVVP2)
2. Conductor cross-sectional area (mm²)
3. Number of cores
4. Shielding type (none / copper tape / copper braid)
5. Sheath material (PVC / LSZH)
6. Rated voltage and required length

Example: KVV 1.5mm² × 10C – 450/750V – Copper Tape Shielded – PVC Sheath

FAQ

1、 What are the rated voltage and temperature of PVC control cables?
Typically, PVC control cables have a rated temperature of 70°C and a rated voltage of 300/500V or 450/750V. Specific values depend on the cable model and specification.

2、 Which standards do your cables comply with?

Our products are manufactured in strict accordance with GB,standards.

3、 Do you provide customized cable services?

Yes. We offer OEM and ODM services and can customize conductor structure, insulation material, sheath color, shielding type, and temperature rating according to customer requirements.

4、 What is your minimum order quantity (MOQ)?

The minimum order quantity is usually 100–500 meters, depending on the cable type. Special specifications can be negotiated.

5、 What is your delivery time?

It usually takes about a week for 100 meters. For bulk orders, please contact the manufacturer

6、 Can you provide samples?

Yes, samples are available for testing. Standard samples are free of charge, while freight costs are borne by the buyer.Customers may also send samples for us to use as a reference for production.
